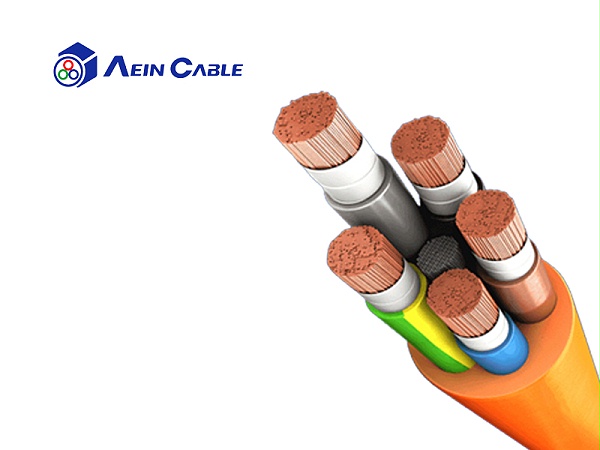

Conductor material: tinned annealed copper wire

Conductor grade: superfine stranded, acc. to IEC 60228  cl. 6 pt. 4

Core insulation: ETFE

Core identification:

<18AWG: 5 cores and below are distinguished by color separation, acc. to DIN 47100, multi-core cables above 5 cores are distinguished by core wire color separation, and white ink is used for distinction; ≥18AWG: 5 cores and below are distinguished by color separation, including yellow/ Green ground wire, acc.to DIN 47100, multi-core cables with more than 5 cores use black core wires, and white ink numbers are used to distinguish them. (customized upon request if there are special requirements)

Stranding: stranded in layers and back twisted

Shield: copper braid/wind tinned

Outer sheath: Flame retardant PUR

Sheath color: Black (RAL 9005)/green (RAL 6018)

Rated voltage:UL&CUL: 300V, 600V; IEC: 300/300V

Testing voltage: min. 2 kV

Minimum bending radius Fixed: 4 x d

Minimum bending radius Moved: 7.5 x d < 10 mm  | 10 x d ≥ 10 mm | torsion: 10 x d

Speed: Self-support: maximum.10 m/s, slide: Max.5 m/s

Torque: maximum 270°/s

Conductor length: maximum. 50 m

Torque: >500w - 270°/m; > 800w - 60°/m

Twist: +/- 270 °/m

Operating temperature Fixed :-50℃/ +80℃

Operating temperature Moved: -30℃ / +80℃, torsion: -25℃/ +80℃

Burning behavior: flame retardant IEC60332-1-2, VW-1, FT1

Certification: CE;UL/CUL   If needed UL Certification should be noted separately

Product identification: Aein bei ke®   SHANGHAI  AEIN  WIRE ＆ CABLE  CO.,LTD Model number specification voltage FLEXIBLE CONNECTION   OIL RESISTANT ABRASION RESISTANT  CE Drag chain mark  Meter mark
