UL21316 American Standard UL Certified cable - American Standard cable

Product introduction

01 Product application
Typical application areas:

For flexing applications, Class 3

Especially for unsupported travels, Class 1

Without influence of oil, Class 1

No torsion, Class 1

Preferably indoor applications

Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

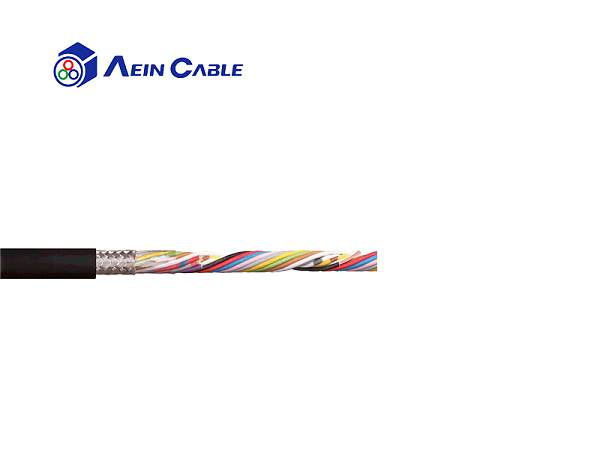

Product structure

	Min. bend radius, e-chain® (factor)	12.5 x d
	Min. bend radius, e-chain®	2.7 inch (68.8 mm)
	Min. bend radius, flexible (factor)	10.0 x d
	Min. bend radius, flexible	2.2 inch (55.0 mm)
	Min. bend radius, fixed (factor)	7.0 x d
	Min. bend radius, fixed	1.5 inch (38.5 mm)
	Temperature, e-chain® min.	41 °F (5 °C)
	Temperature, e-chain® max.	158 °F (70 °C)
	Temperature, flexible	+23 °F to +158 °F (-5°C to +70°C)
	Temperature, fixed	+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)
	v max., unsupported	10 ft/s (3 m/s)
	a. max.	65.6 ft/s² (20 m/s²)
	Length of travel	Unsupported up to 33 ft (10 m)

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality PVC mixture (following EN 50363-3)
	Conductor construction	Cores stranded in optimized pitch
	Conductor identification	Colour code according to DIN 47100
	Element shield	Bending-resistant braiding made of tinned copper wires.
	Inner jacket	PVC mixture suited to the requirements in e-chains®
	Overall shield	Braid made of tinned copper wires. Shield about 60% optical.
	Unshielded	No
	Outer jacket	Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®.
	Outer jacket	Low adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®
	Jacket color	Jet black (similar to RAL 9005)

Alternative IGUS Cable Datal Cable CF8821
