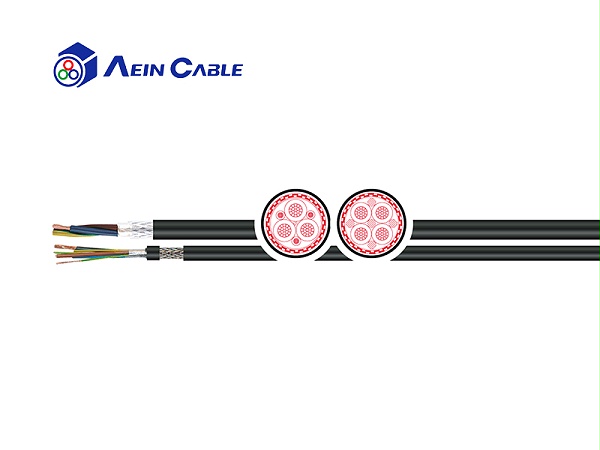

Alternative TKD SERVO 2XSL(St)CYK VFD TRAY UL/CSA 0,6/1 kV EMC Cable

increased oil-resistant control and power supply cables for use in cable trays or cable channels with frequency converter technology. For medium mechnical stresses,for fixed or flexible installation where free movement is required without tensile stress and without forced guidance systems, in dry, damp and wet interiors (incl. water-oil mixtures). For outdoor use and also for direct burial. TC-ER (Tray Cable - Exposed Run) approval open wiring between cable tray and industrial machines/plants acc. NEC 336.10(7)

EMAILEMAIL:info@aein-cable.com

Product introduction
  • 01 Product application increased oil-resistant control and power supply cables for use in cable trays or cable channels with frequency converter technology. For medium mechnical stresses,for fixed or flexible installation where free movement is required without tensile stress and without forced guidance systems, in dry, damp and wet interiors (incl. water-oil mixtures). For outdoor use and also for direct burial. TC-ER (Tray Cable - Exposed Run) approval open wiring between cable tray and industrial machines/plants acc. NEC 336.10(7)
  • 02 Product characteristics•increased resistance to oil by special PVC outer sheath, largely resistant to acids and bases •max. perm. current carrying capacity at 30 ° C ambient temp.•direct burial •UV-res.acc.to EN 50396 & HD 605 A1; SUN RES acc.to UL 1581 •low operating capacity, low coupling resistance •flexible at low temperatures up to -15 °C •TC-ER (Tray Cable - Exposed Run)• enables trouble-free operation of frequency converters through optimum EMC compliant shielding
  • 03 Technical certification

    •conform to RoHS •conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE

     •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Conductor material: Bare copper strand
Conductor class: Acc. to IEC 60228 cl. 5
Core insulation: XLPE
Core identification: Acc. to DIN VDE 0293-308 coloured cores with GNYE
Stranding: Stranded in layers
Shield3: Alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned
Outer sheath: PVC
Sheath colour: Black, RAL 9005
Rated voltage: Uo/U 0,6/1 kV (UL 1277: 600 V) - highest permissible operating voltage Single phase and three-phase: 700/1200 V, DC operation: 900/1800 V
Testing voltage: 6 kV
Conductor resistance: Acc. to IEC 60228 cl. 5
Insulation resistance: Min. 200 MΩ x km
Current-carrying-capacity: Look at the table on the right side
Capacity: Siehe Tabelle rechte Seite
Min. bending radius fixed: ≤ 12mm Ø: 5 x d; ≤ 20mm Ø: 7,5 x d; > 20mm Ø: 10 x d
Min. bending radius moved: ≤ 12mm Ø: 10 x d; ≤ 20mm Ø: 15 x d; > 20mm Ø: 20 x d
Operat. temp. fixed min/max: -40 °C / +90 °C
Operat. temp. moved min/max: -15 °C / +80 °C
Temp. at conductor: + 90 °C in operation; +250 °C in case of short-circuit
Burning behavior: Self-extinguishing & flame-retardant acc.to IEC 60332-3-24 Cat. C, FT4/IEEE
Resistant to oil: UL OIL RES I
Approvals: UL/CSA: cULus 600 V / 90 °C - UL1277
