UL21316 American Standard UL Certified cable - American Standard cable

Product introduction

01 Product application
- Typical application areas
  - For flexing applications
  - With influence of oil
  - Indoor and outdoor applications without direct solar radiation
  - Especially for unsupported travels
  - Machining units/machine tools, low temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

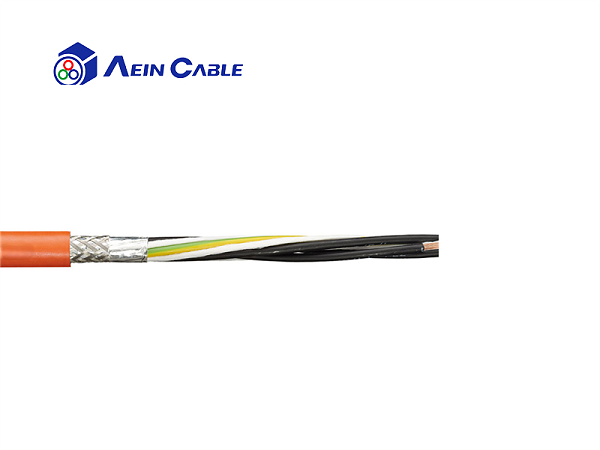

Product structure

	Min. bend radius, e-chain® (factor)	15.0 x d
	Min. bend radius, e-chain®	4.4 inch (112.5 mm)
	Min. bend radius, flexible (factor)	12.0 x d
	Min. bend radius, flexible	3.5 inch (90.0 mm)
	Min. bend radius, fixed (factor)	8.0 x d
	Min. bend radius, fixed	2.4 inch (60.0 mm)
	Temperature, e-chain® min.	-4 °F (-20 °C)
	Temperature, e-chain® max.	176 °F (80 °C)
	Temperature, flexible	-40 °F to +176 °F (-20 °C to +80 °C)
	Temperature, fixed	-58°F to +176°F (-50°C to +80°C)
	v max., unsupported	10 ft/s (3 m/s)
	a. max.	65.6 ft/s² (20 m/s²)
	Length of travel	Unsupported up to 33 ft (10 m)

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality, especially low-capacitance TPE mixture
	Overall shield	Braid made of tinned copper wires. Shield about 60% optical.
	Unshielded	No
	Outer jacket	Low adhesion mixture on the basis of iguPUR, adapted to suit the requirements in e-chains®
	Jacket color	Pastel orange (similar to RAL 2003)

Alternative IGUS Cable Motor Cable CF896
