UL21316 American Standard UL Certified cable - American Standard cable

Product introduction

01 Product application
- Typical application areas
  - For heaviest duty applications
  - Almost unlimited resistance to oil, also with bio-oils
  - Indoor and outdoor applications, UV resistant
  - Unsupported and gliding travel distances up to 1,312 ft (400 m) and more
  - Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, outdoor cranes, low-temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

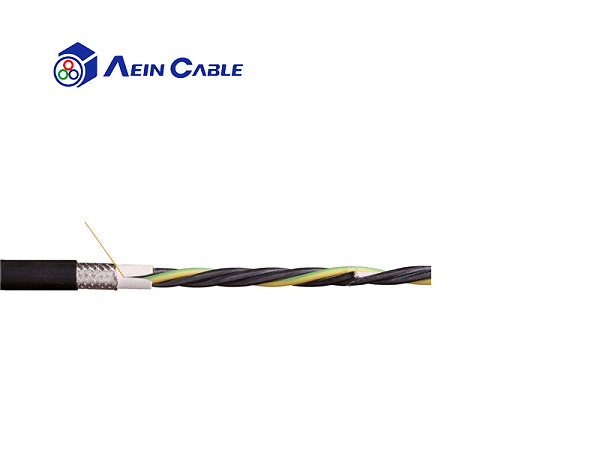

Product structure

	Min. bend radius, e-chain® (factor)	7.5 x d
	Min. bend radius, e-chain®	2.8 inch (71.3 mm)
	Min. bend radius, flexible (factor)	6.0 x d
	Min. bend radius, flexible	2.2 inch (57.0 mm)
	Min. bend radius, fixed (factor)	4.0 x d
	Min. bend radius, fixed	1.5 inch (38.0 mm)
	Temperature, e-chain® min.	-31 °F (-35 °C)
	Temperature, e-chain® max.	194 °F (90 °C)
	Temperature, flexible	-58 °F to 194 °F (-50 °C to +90 °C)
	Temperature, fixed	-67 °F to 194 °F (-55 °C to +90 °C) (following DIN EN 50305)
	v max., unsupported	33 ft/s (10 m/s)
	v max. gliding	20 ft/s (6 m/s)
	a. max.	262.5 ft/s² (80 m/s²)
	Length of travel	Travels up to 1312 ft and more (400 m and more)

	Conductor	Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality, especially low-capacitance TPE mixture
	Conductor construction	Cores stranded in short pitch length over a centre element for high tensile stresses
	Conductor identification	Cores black with white numerals, one core green-yellow. 1.Core: U / L1 / C / L+ 2.Core: V / L2 3.Core: W / L3 / D / L- 4. Core: 4 / N
	Inner jacket	TPE mixture suited to the requirements in e-chains®
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
	Unshielded	No
	Outer jacket	Low-adhesion mixture on the basis of TPE, especially abrasionresistant and highly flexible, adapted to suit the requirements in e-chains®.
	Jacket color	Jet black (similar to RAL 9005)
	CFRIP®	Quickly stripping: CFRIP® tear strip at inner jacket

Alternative IGUS Cable Motor Cable CF38
