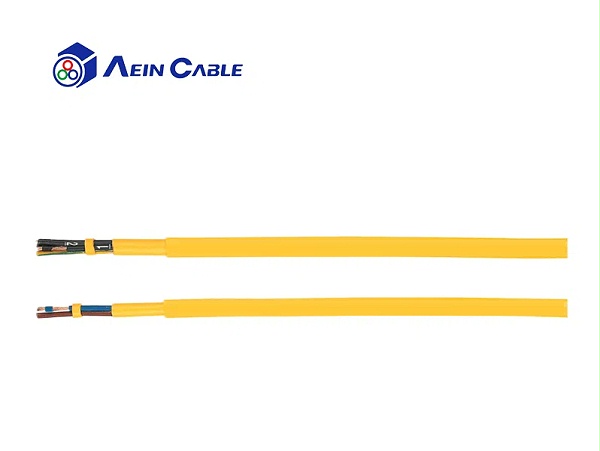

Alternative Helukabel Halogen Free Control Cable H05BQ-F / H07BQ-F

These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with the hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circulars saws, as well as for portables motors and machinery in agriculture and at building sites, docks and refrigeration plants.

EMAIL:info@aein-cable.com

Product introduction

01 Product application
- - These cables can be used for medium mechanical loads in dry, damp or wet environments, e. g. for connecting agricultural and commercial equipment and heaters provided there is no danger of contact with hot parts or by radiation of heat. These robust and flexible cables are used for electrical tools such as drills and hand-held circulars saws, as well as for portables motors and machinery in agriculture and at building sites, docks and refrigeration plants.
02 Product characteristics •Abrasion resistant •Notch resistant and resistant to tearing and cutting
03 Technical certification
•oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404

• UV-resistant acc. to DIN EN ISO 4892-2

•weather-resistant acc. to DIN EN ISO 4892-2

Product structure

Dynamic information

	Min. bend radius, flexible	flexible 5 x Outer-Ø
	Min. bend radius, fixed	flexible 3 x Outer-Ø
	Temperature, flexible	flexible -40°C to +80°C
	Temperature, fixed	fixed -50°C to +90°C
	Nominal voltage	H05BQ-F U0/U 300/500 V H07BQ-F U0/U 450/750 V
	Test voltage core/core	H05BQ-F 2000 V H07BQ-F 2500 V

Cable structure

	Conductor	Bare copper conductor, to DIN VDE 0295 cl.5, fine wire, BS 6360 cl.5, IEC 60228 cl.5
	Conductor insulation	Core insulation of rubber compound type EI6 acc. to DIN VDE 0207-363-1 / DIN EN 50363-1
	Identification	Core identification to DIN VDE 0293-308
	Outer jacket	Outer sheath of PUR compound type TMPU acc. to DIN EN 50363-10-2
	Stranding	Cores stranded with optimal lay lengths
	Jacket color	Orange (RAL 2003)
	Length marking	in meters
