  • Alternative IGUS CFTHERMO Thermocouple Cable

Alternative IGUS CFTHERMO Thermocouple Cable

Typical application areas

 For heavy duty applications

 Almost unlimited resistance to oil

 Indoor and outdoor applications with average sun radiation

 Unsupported travel distances and up to 164 ft (50 m) for gliding applications

 Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas


EMAILEMAIL:info@aein-cable.com

Product introduction
  • 01 Product application

        • For heavy duty applications with torsion movements
        • Almost unlimited resistance to oil
        • Indoor and outdoor applications with average sun radiation
        • Unsupported travel distances and up to 164 ft (50 m) for gliding applications
        • Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    •Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

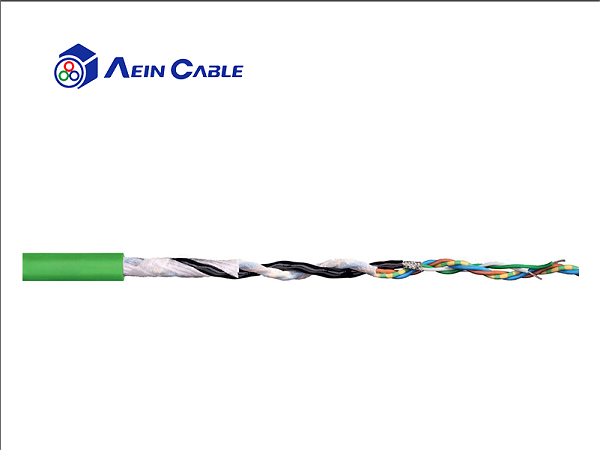

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

12.5 x d

Min. bend radius, e-chain®

2.7 inch (68.8 mm)

Min. bend radius, flexible (factor)

10.0 x d

Min. bend radius, flexible

2.2 inch (55.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

1.1 inch (27.5 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40°F to +176°F (-60°C to +80°C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

v max. unsupported

7 ft/s (2 m/s)

a max.

65.6 ft/s² (20 m/s²)

Length of travel

Travels up to 164 ft (50 m)

Cable structure

Conductor

Conductor made of highly flexible special alloy


Conductor insulation
 Mechanically high-quality TPE mixture

Overall shield Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.


Unshielded

No


Outer jacket Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)


Jacket color

Jet black (similar to RAL 9005)
