Alternative IGUS PUR Hybrid Cable for axis 7 of CFSPECIAL-792 Robots

Typical application areas

Reliable e-chain® cable for the seventh robot axis

 Electrical characteristics in line with KUKA (.011) and ABB (.012)


EMAILEMAIL:info@aein-cable.com

Product introduction
  • 01 Product application
        • Reliable e-chain® cable for the seventh robot axis
        • Electrical characteristics in line with KUKA (.011) and ABB (.012)


  • 02 Product characteristics •Conform to RoHS standard
    •UV resistance
    •Flame retardant acc. to CSA C22.2 No.2556-15 FT2
    •Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
    •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  UL&CUL standard UL758,CSA C22.2 No. 210

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

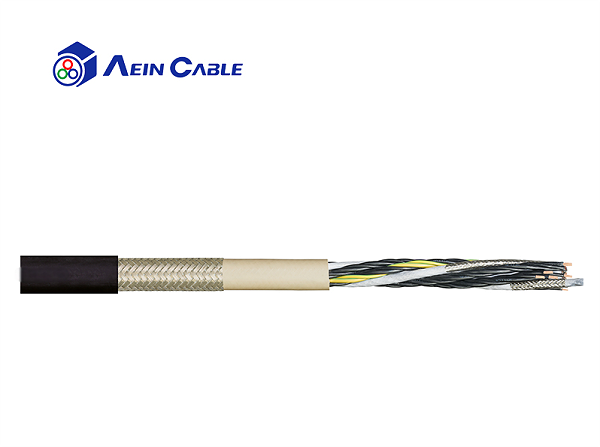

Product structure
Dynamic information

Min. bend radius, e-chain® (factor)

10.0 x d

Min. bend radius, e-chain®

10.4 inch (265.0 mm)

Min. bend radius, flexible (factor)

8.0 x d

Min. bend radius, flexible

8.3 inch (212.0 mm)

Min. bend radius, fixed (factor)

5.0 x d

Min. bend radius, fixed

5.2 inch (132.5 mm)

Temperature, e-chain® min.

-13 °F (-25 °C)

Temperature, e-chain® max.

176 °F (80 °C)

Temperature, flexible

-40°F to +176°F (-20°C to +80°C)

Temperature, fixed

-58°F to +176°F (-50°C to +80°C)

max. unsupported

10 ft/s (3 m/s)


v max. gliding
7 ft/s (2 m/s)

a max.

328.1 ft/s² (100 m/s²)

Length of travel

For hanging applications up to 328 ft (10 m)

Cable structure

Conductor

Fine-wire stranded conductor consisting of bare copper wires (according to DIN EN 60228)


Conductor insulation
Mechanically high-quality TPE mixture

Overall shield Bending-resistant braiding made of tinned copper wires.


Unshielded

No

v
Overall shield
Yes

Outer jacket Low adhesion, highly abrasion resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (According to DIN EN 50363-10-2)

Inner jacket
TPE mixture suited to the requirements in e-chains®


Jacket color

Jet black (similar to RAL 9005)
