UL21316 American Standard UL Certified cable - American Standard cable

Product introduction

01 Product application
Typical application areas
- For heaviest duty applications
- Almost unlimited resistance to oil, also with bio-oils
- Indoor and outdoor applications, UV resistant
- Especially for unsupported travels and gliding travel distances up to 1,312 ft (400 m) and more
- Storage and retrieval units for high-bay warehouses, machining units/machine tools, quick handling, cleanroom, semiconductor insertion, ship to shore, outdoor cranes, low-temperature applications
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

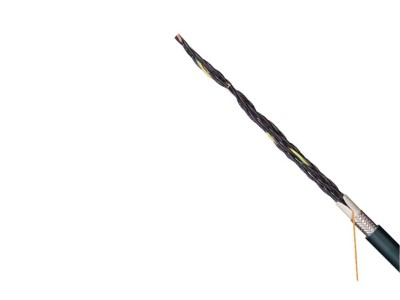

Product structure

	Min. bend radius, e-chain® (factor)	5.0 x d
	Min. bend radius, e-chain®	1.4 inch (35.0 mm)
	Min. bend radius, flexible (factor)	4.0 x d
	Min. bend radius, flexible	1.1 inch (28.0 mm)
	Min. bend radius, fixed (factor)	3.0 x d
	Min. bend radius, fixed	0.8 inch (21.0 mm)
	Temperature, e-chain® min.	-31 °F (-35 °C)
	Temperature, e-chain® max.	212 °F (100 °C)
	Temperature, flexible	-49°F to +212°F (-45°C to +100°C)
	Temperature, fixed	-58°F to + 212°F (-50°C to +100°C)
	v max., unsupported	33 ft/s (10 m/s)
	v max. gliding	20 ft/s (6 m/s)
	a. max.	328.1 ft/s² (100 m/s²)
	Length of travel	Travels up to 1312 ft and more (400 m and more)

	Conductor	Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality TPE mixture
	Conductor construction	Conductors stranded in short pitch in one position
	Conductor identification	Colour code according to DIN 47100
	Inner jacket	TPE mixture suited to the requirements in e-chains®
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical.
	Unshielded	No
	Outer jacket	Low adhesion, especially abrasion resistant and highly bending resistant mixture on the basis of TPE, adapted to suit the requirements in e-chains®
	Jacket color	Dark Blue
	CFRIP®	Quickly stripping: CFRIP® tear strip at inner jacket

Alternative IGUS Cable Control Cable CF10-UL
