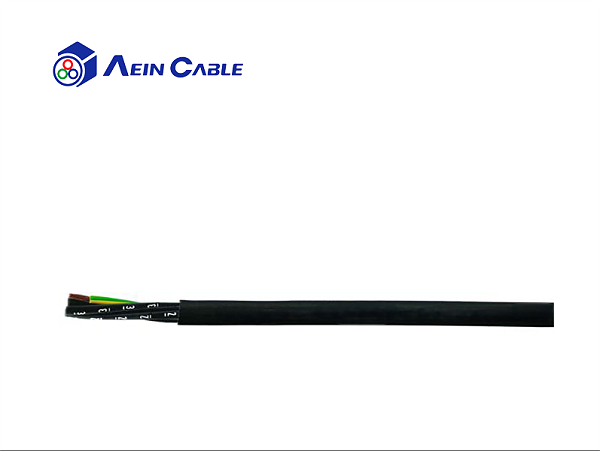

Alternative Helukabel JZ-600 Flexible Number Coded Cable

Connecting and control cable in tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burial (suitable from an outer diameter of 18,0 mm for direct burial) or as underwater cable. The black, special PVC outer sheath is resistant to the ultra violet radiation. Mainly used in South-European, Eastern and Arabian countries.

CE = Product conforms with Low-Voltage Directive 2014/35/EU.

EMAILEMAIL:info@aein-cable.com

Product introduction
  • 01 Product application
        • Connecting and control cable in tool machinery, conveyor belts and production lines, for plant installations, air conditioning and in steel production plants and rolling mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation). Is not suitable to be used as direct burial (suitable from an outer diameter of 18,0 mm for direct burial) or as underwater cable. The black, special PVC outer sheath is resistant to the ultra violet radiation. Mainly used in South-European, Eastern and Arabian countries.
        • CE = Product conforms with Low-Voltage Directive 2014/35/EU.


  • 02 Product characteristics UV resistant •Flame retardant DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 •Oil resistance conform to Oil resistant acc. to DIN EN 60811-404 •Strong tolerance to oils, coolants and lubricants
  • 03 Technical certification

    Conform to  DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2

    •Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

    •We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure
Cable structure

Conductor

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5


Conductor insulation
PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)

Identification Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits

Stranding
Cores stranded in layers with optimal lay lengths

Outer jacket PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)


Jacket color

Black (RAL 9005)


Length marking in meters
