Typical application areas
For heavy duty applications with torsion movements
Almost unlimited resistance to oil
Indoor and outdoor applications, UV resistant
Especially for robots and 3D movements, handling, lead screw drives
EMAIL:momo.tao@aein-cable.com•Conform to UL&CUL standard UL758,CSA C22.2 No. 210
•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE
•We are pleased to produce special versions, other dimensions, core and jacket colours on request.
|
Min. bend radius, e-chain® (factor) |
10.0 x d |
|
Min. bend radius, e-chain® |
3.3 inch (85.0 mm) |
|
Min. bend radius, flexible (factor) |
8.0 x d |
|
Min. bend radius, flexible |
2.7 inch (68.0 mm) |
|
Min. bend radius, fixed (factor) |
5.0 x d |
|
Min. bend radius, fixed |
1.7 inch (42.5 mm) |
|
Temperature, e-chain® min. |
-13 °F (-25 °C) |
|
Temperature, e-chain® max. |
176 °F (80 °C) |
|
Temperature, flexible |
-40 °F to +176 °F (-20 °C to +80 °C) |
|
Temperature, fixed |
-58°F to +176°F (-50°C to +80°C) |
|
v max. twisted |
180 °/m |
|
a max., twisted |
60 °/s² |
|
Length of travel |
Robots and motions in 3D area, Class 1 |
|
Torsion |
± 180°, with 1 m cable length |
|

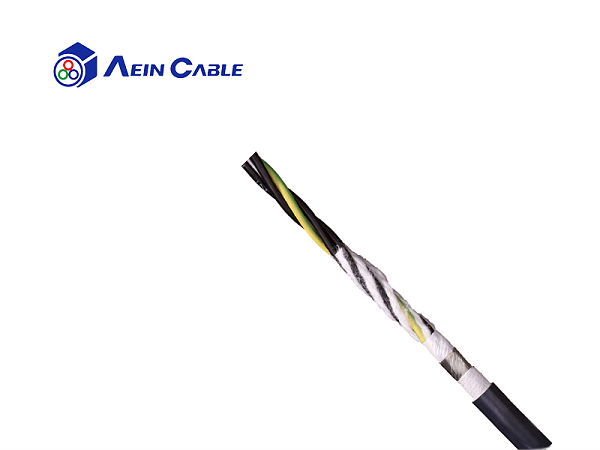

Conductor |
Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (according to DIN EN 60228) |
|
Conductor insulation |
Mechanically high-quality TPE mixture |
|
Conductor identification |
Cores black with white numerals, one core green-yellow |
|
Element shield |
Extremely torsion-resistant tinned braided copper shield. Coverage approx. 85 % optical |
|
Unshielded |
No |
|
|
Outer jacket |
Low-adhesion, halogen-free, highly abrasion-resistant mixture on the basis of PUR, adapted to suit the requirements in e-chains® (following EN50363-10-2). |
|
Jacket color |
Steel blue (similar to RAL 5011) |
Alternative IGUS Bus Cable CFROBOT8.PLUS
Alternative IGUS Hybrid Control Cable CFROBOT9
