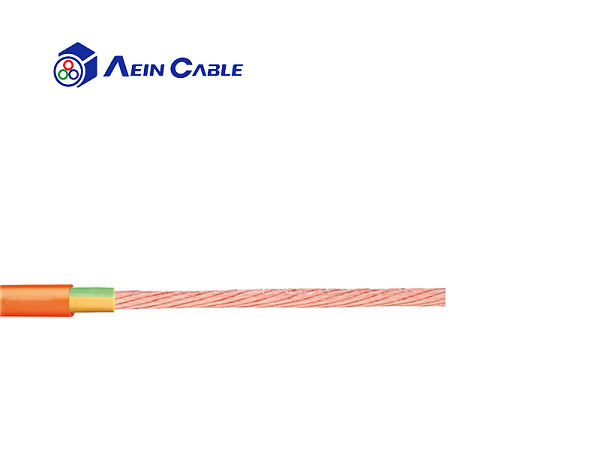

UL21316 American Standard UL Certified cable - American Standard cable

Product introduction

01 Product application
- Typical application areas
  - For heavy duty applications with torsion movements
  - Almost unlimited resistance to oil
  - Indoor and outdoor applications, UV resistant
  - Especially for robots and 3D movements, handling, lead screw drives
02 Product characteristics •Conform to RoHS standard
•UV resistance
•Flame retardant acc. to CSA C22.2 No.2556-15 FT2
•Oil resistance conform to UL1581:IRM 902. DIN EN 60811-1-2
•Strong tolerance to oils, coolants and lubricants
03 Technical certification
•Conform to UL&CUL standard UL758,CSA C22.2 No. 210

•Conform to 2014/35/EU-Guideline (''Low voltage Directive'') CE

•We are pleased to produce special versions, other dimensions, core and jacket colours on request.

Product structure

	Min. bend radius, e-chain® (factor)	15.0 x d
	Min. bend radius, e-chain®	3.8 inch (97.5 mm)
	Min. bend radius, flexible (factor)	12.0 x d
	Min. bend radius, flexible	3.1 inch (78.0 mm)
	Min. bend radius, fixed (factor)	8.0 x d
	Min. bend radius, fixed	2.0 inch (52.0 mm)
	Temperature, e-chain® min.	41 °F (5 °C)
	Temperature, e-chain® max.	158 °F (70 °C)
	Temperature, flexible	+23 °F to +158 °F (-5°C to +70°C)
	Temperature, fixed	+5 °F to +158 °F (-15 °C to +70 °C) (following DIN EN 50305)
	v max., unsupported	10 ft/s (3 m/s)
	a. max.	65.6 ft/s² (20 m/s²)
	Length of travel	Unsupported up to 33 ft (10 m)

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228)
	Conductor insulation	Mechanically high-quality, PVC mixture
	Conductor construction	Cores stranded in optimized pitch
	Conductor identification	Cores black with white numerals, one core green-yellow. 1.Core: U / L1 / C / L+ 2.Core: V / L2 3.Core: W / L3 / D / L-
	Unshielded	Yes
	Outer jacket	Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in e-chains®.
	Jacket color	Pastel orange (similar to RAL 2003)

Alternative IGUS Cable Motor Cable CF885-PE
