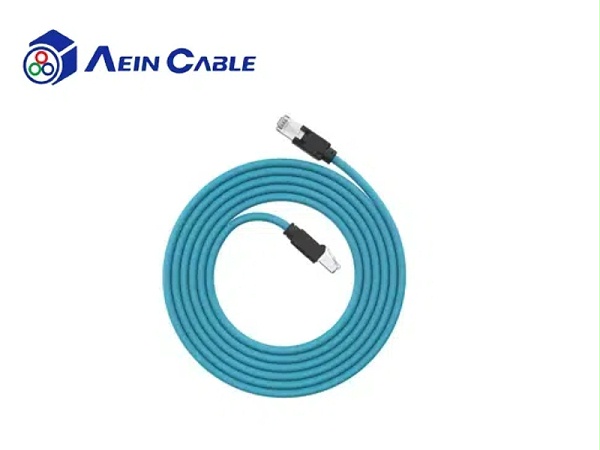

Profinet C bus connector

Product introduction

01 Product application Designed specifically for the PROFINET protocol, it is used in a wide range of industrial EtherNet applications, directly connecting two electronic devices, instruments, etc., and can be applied in EtherCAT and EtherNet/IP. Suitable for fixed installation and indoor application.
02 Product characteristics·It has an excellent ability to resist external electromagnetic interference ·Wear-resistant, oil-resistant, and the PUR sheath has better performance· Long service life ·It is flexible to use and the equipment can be easily replaced ·A variety of lengths and sheath options are available· Excellent electrical performance of CAT5e ·The wire has UL safety certification ·Comply with RoHS2.0
03 Technical certification · Comply with RoHS2.0
· The flame retardant performance of the cable complies with :IEC60332-1· It complies with UL certification and CE certification

Product structure

Conductor specification :4X22AWG(19/0.15 tin-plated copper)

Outer diameter of the wire :6.5±0.3mm

Insulating material :HDPE

Core wire colors: white, blue, yellow, orange

Shielding: Aluminum foil + tin-plated copper braided

Shielding density :≥85%

Characteristic impedance :100±5Ω

Protection grade :IP20

Sheath :PVC/PUR(optional)

Sheath color: Green (optional)

Operating temperature :-40℃ to 80℃

Application scenario: Mobile application (bending times ≥5 million times)

Bending radius (fixed):4D(D is the cable diameter)

Bending radius (movement):8D(D is the cable diameter)

Rated voltage :24V

Test voltage :300V

Flame retardant grade :IEC60332 flame retardant standard

Execution standard: Complies with the 2014/35/EU standard

Reference standards: The transmission performance complies with ISO/EC11801, IEC61156-1, and IEC61156-6

Certification: UL&CE
