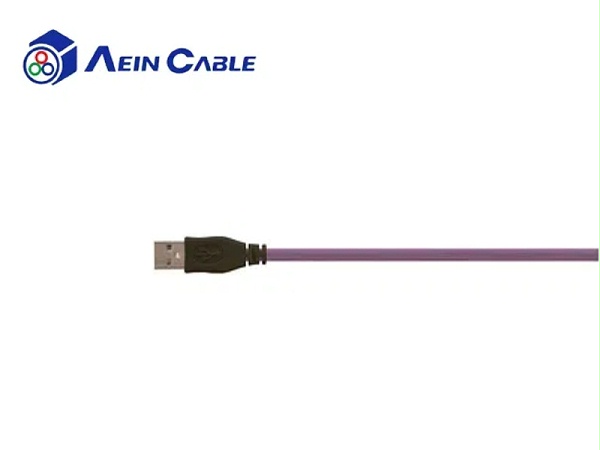

PUR-Bus cable connector

Product introduction

01 Product application For extremely high loads with torsional motion, particularly suitable for robotics and 3D motion, conveying, screw drives.
02 Product characteristics· Anti-electromagnetic interference
· Anti-UV · Oil and dirt resistant
03 Technical certification · Comply with RoHS
· Flame retardant compliant: IEC60332

Product structure

Conductor material: annealed copper soft conductor

Insulation material: TPE

Insulation color: black (optional)

Shielding: tinned copper shielding (optional)

Sheath: PUR

Sheath color: black (optional)

Operating temperature: -25°C to +70°C

Bending radius: 7D

Rated voltage: 50V

Test voltage: 500V

Flame retardant grade :IEC60332 flame retardant standard

Implementation standard: in accordance with 2014/35/EU standard

Certification: CE

Product marking: Aein bei ke® SHANGHAI AEIN WIRE & CABLE COLTD XXX XxX 50V CE
