Fire Alarm Cables are manufactured in accordance to the most crucial fire saftey codes and regulations, providing solutions for even the most critical of applications. These cables are superior for fire protective signaling circuits, as well as smoke detectors, voice communications, audio, control, initiating and notification circuits.
EMAIL:momo.tao@aein-cable.com
Fire protective signaling circuits. Also for smoke detectors, voice communications, audio control and initiating circuits.
flame retardant self-extinguishing
CONDUCTOR :Bare copper （Complies with IEC 60228 cl. 1 standard, Complies with IEC 60228 c1.2 standard）
INSULATION :PVC
DRAINAGE WIRE: 1/0.404+0.008mm solid tinned copper (optional)
INNER SHEATH :PVC compound to EN50290-2-22
SHIELDING: Aluminum foil (optional)
OUTER SHEATH: PVC
SHEATH COLOR: red or white, etc.
TEST VOLTAGE: DC: 2500V/2S, no breakdown
MAX. resistance: 5.31 Ohms/KM at 20°C
MIN. insulation resistance: 100 MΩ/KFT at 15.6°C
RATED VOLTAGE :300 V
WORKING TEMPERATURE :-20°C / + 105°C
STANDARD: Insulation and sheathing comply with UL1581
Flame Propagation (single insulation): UL 2556
Flame Propagation (Multiple Cables): UL1666

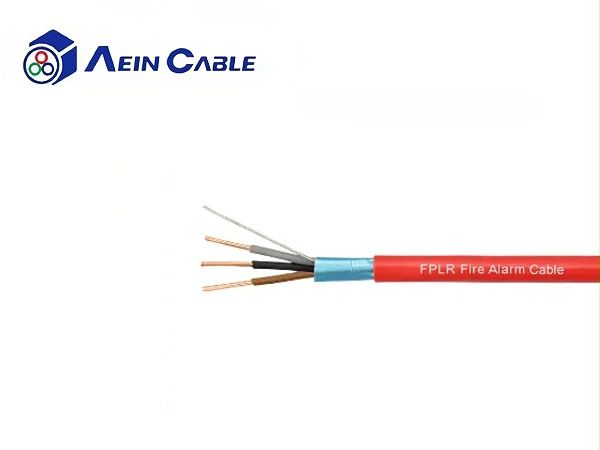

UL1424 FPL 300V 105°C Fire Alarm Cable ( aluminum foil / draining wire )
UL1424 FPLR Fire Alarm Cable
