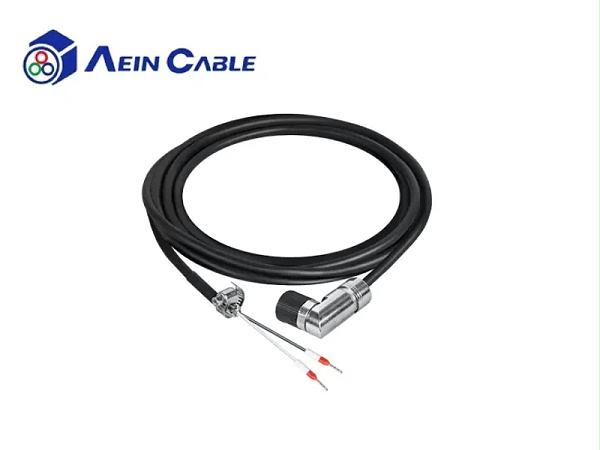

V90 servo group/Alarm cable assembly

Product introduction

01 Product application It is applied to connect servo drivers in CNC machine tools, mechanical arms, laser processing equipment, automated production lines, etc. Realize the power supply and signal control of the servo driver; Ensure the high efficiency and high precision of the equipment operation.
02 Product characteristics · It has excellent heat resistance and oil resistance
· It has excellent resistance to external electromagnetic interference
· High flexibility and easy to bend
· The number of drag chain cycles is greater than or equal to 1 million times
Technical certification03 · Comply with RoHS2.0· It complies with UL certification and CE certification

Product structure

Conductor specification: 2x0.75mm ² (24/0.20mm bare copper stranded wire)

Outer diameter of the wire :6.4±0.3mm

Insulating material :PVC

Core wire color: Black/white

Shielding: Tin-plated copper braided

Shielding density :≥80%

Sheath :PVC

Sheath color: Black (optional)

Operating temperature :-40°C to 80°C

Bending radius (fixed):6xOD(OD: indicates the diameter of the cable)

Bending radius (movement):15xOD(OD: indicates the diameter of the cable)

Drag chain operation times (at 20°C):≥1 million times (Bending radius :≥7.5 × OD, operation distance :1m, operation speed :1m/s)

Rated voltage :50V

Test voltage :500V

Flame retardant grade :IEC60332 flame retardant standard

Execution standard: Complies with the 2014/35/EU standard

Certification :UL&CE
