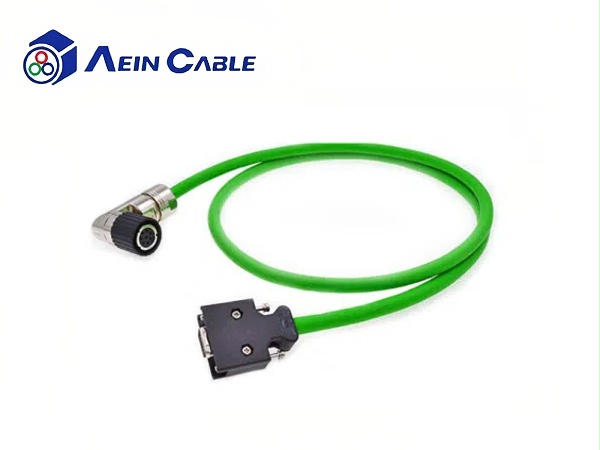

V90 servo assembly/incremental encoder cable assembly

It is applied to the connection encoders of CNC machine tools, mechanical arms, laser processing equipment, automated production lines, etc. Realize the power supply and signal control of the encoder; Ensure the high efficiency and high precision of the equipment operation.

EMAILEMAIL:momo.tao@aein-cable.com

Product introduction
  • 01 Product application It is applied to connect encoders in CNC machine tools, mechanical arms, laser processing equipment, automated production lines, etc., to achieve power supply and signal control for encoders. Ensure the high efficiency and high precision of the equipment operation.
  • 02 Product characteristicsIt has excellent heat resistance and oil resistance
    It has excellent resistance to external electromagnetic interference
    It has a very small bending radius
    The drag chain can meet 2 million drag chain times
  • Technical certification03 · Comply with RoHS2.0·  It complies with UL certification and CE certification
Product structure

Conductor specification:3 x (2 x0) 2 mm squared AL) + 2 x2x0. 25 mm squared
                                         2x0.2mm²:14/0.15mm bare copper stranded wire;
                                         3x(2x0.2mm²-AL):7/0.2mm bare copper stranded wire

Outer diameter of the wire :7.0±0.3mm

Insulating material :PE

Core wire color :2x0.25mm²:1P: red, blue; 2P: black, purple;
                          3x(2x0.2mm²-AL)3P: white, brown 4P: Gray, pink 5P: Yellow, green

Shielding: Tin-plated copper braided

Shielding density :≥85%

Sheath :PVC

Sheath color: Black (optional)

Operating temperature :-40°C to 80°C

Bending radius:Fixed installation :6xOD(OD: Indicates cable diameter)
                            Mobile installation :15xOD(OD: Indicates cable diameter)

The running times of the drag chain (at 20°C):≥1 million times (bending radius :7.5xOD)
                                                                    Operating speed :1m/s
                                                                    Operating distance :1 meter

Rated voltage :50V

Test voltage :500V

Flame retardant grade :IEC60332 flame retardant standard

Execution standard: Complies with the 2014/35/EU standard

Certification :UL&CE
