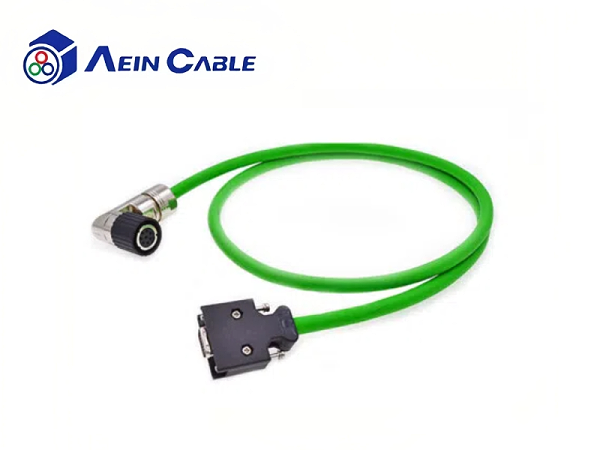

A servo cable is a specially designed cable used to connect a servo motor with a servo drive. It transmits both electrical power and control signals, enabling the motor to move accurately, quickly, and reliably.
Unlike ordinary industrial cables, servo cables are engineered to withstand:
These characteristics make servo cables essential for modern automation systems.
Servo motors are responsible for precise motion control in automated equipment.
If the cable fails, the entire system may experience:
A high-quality servo cable helps ensure stable signal transmission and long service life, even in demanding industrial environments.

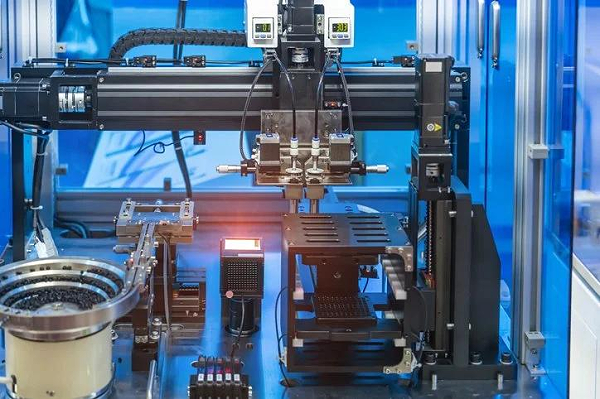

Servo cables are widely used in industries that rely on accurate motion control.
Typical applications include:
As factories continue to adopt Industry 4.0 technologies, the demand for reliable servo cables continues to grow.
Although designs vary by manufacturer, servo cables generally fall into the following categories.
Power cables deliver electrical energy from the servo drive to the servo motor.
Features include:
Encoder cables transmit position and speed feedback from the motor to the controller.
These cables require:
Without reliable encoder communication, the servo system cannot maintain accurate positioning.
Some modern automation systems combine power and feedback circuits into a single hybrid cable.
Benefits include:

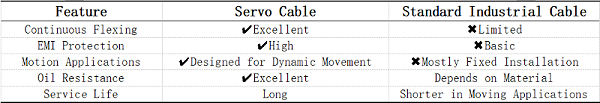

Although they may look similar, their performance is very different.
Choosing an ordinary cable for a servo system may reduce the overall reliability of your equipment.
When selecting a servo cable, look for the following characteristics:
The cable should withstand millions of bending cycles without conductor breakage.
Shielding minimizes electromagnetic interference (EMI) and ensures stable communication.
Industrial environments often expose cables to lubricants, coolants, and cleaning agents.
Durable outer jackets protect against mechanical wear.
Servo cables should perform reliably in both hot and cold environments.
Robotic applications often require cables to withstand twisting as well as bending.
Before purchasing, consider the following questions:
Different brands may require different cable constructions or connector configurations.
For drag chain or robotic applications, continuous-flex servo cables are recommended.
If yes, choose double-shielded or high-performance shielded cables.
Consider:
Selecting the right cable for your environment can significantly increase equipment reliability and reduce maintenance costs.
Many equipment failures are caused not by the motor itself but by cable issues.
Common problems include:
Routine inspection and choosing certified cables can prevent most of these issues.
A reliable manufacturer offers more than just cables—they provide engineering support, quality assurance, and long-term consistency.
When evaluating a supplier, consider:
These factors are especially important for machine builders, automation integrators, and industrial distributors.

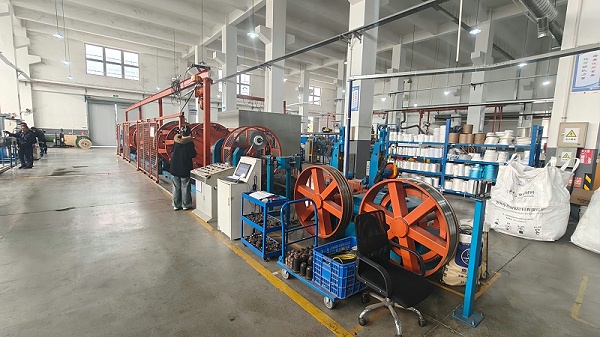

At AEIN Cable, we specialize in manufacturing high-performance industrial cables for global automation markets.
Our servo cable solutions are designed for demanding applications, offering:
Whether you're building new automation equipment or upgrading existing systems, our engineering team can help you find the right cable for your application.
Looking for reliable industrial cable solutions?
AEIN Cable has over 14 years of experience in manufacturing:
• UL CMP Plenum Cable
• Servo Cable
• Drag Chain Cable
• Robot Cable
• Continuous Flex Cable
Visit https://www.aein-wirecable.com to explore our products and technical resources.
