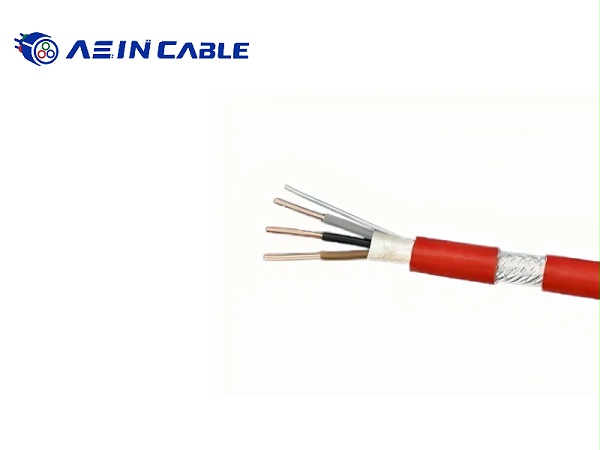

Fire-rated cables are primarily used for emergency lighting, fire monitoring, signal and sensor systems, blower systems, communication call systems, control equipment systems, fire pump circuits, and fire alarm system circuits. Examples
include: school offices, airports, tunnels, train stations, computer systems, alarm systems, traffic control systems, and fire protection systems.
Conductor Material: Bare Copper
Conductor Grade: Complies with IEC 60228 cl.1; Complies with IEC 60228 cl.2
Conductor Insulation: Halogen-free
Fire-resistant Layer: Fire-retardant tape
Shielding: Aluminum foil + tinned copper drain wire (optional)
Outer Sheath: LSZH
Sheath Color: Red
Test Voltage: DC: 2500 V/2S, no breakdown
Operating Voltage: 300/500 V
Temperature Rating: -40°C / +90°C
Standards: BS 6387 CWZ; Complies with BSEN50200-2015; Fire Resistance Duration: PH30, PH60, PH120
NHXH-FE 0.6/1KV Low Smoke Zero Halogen 180/E 30 halogen-free fireproof cable
